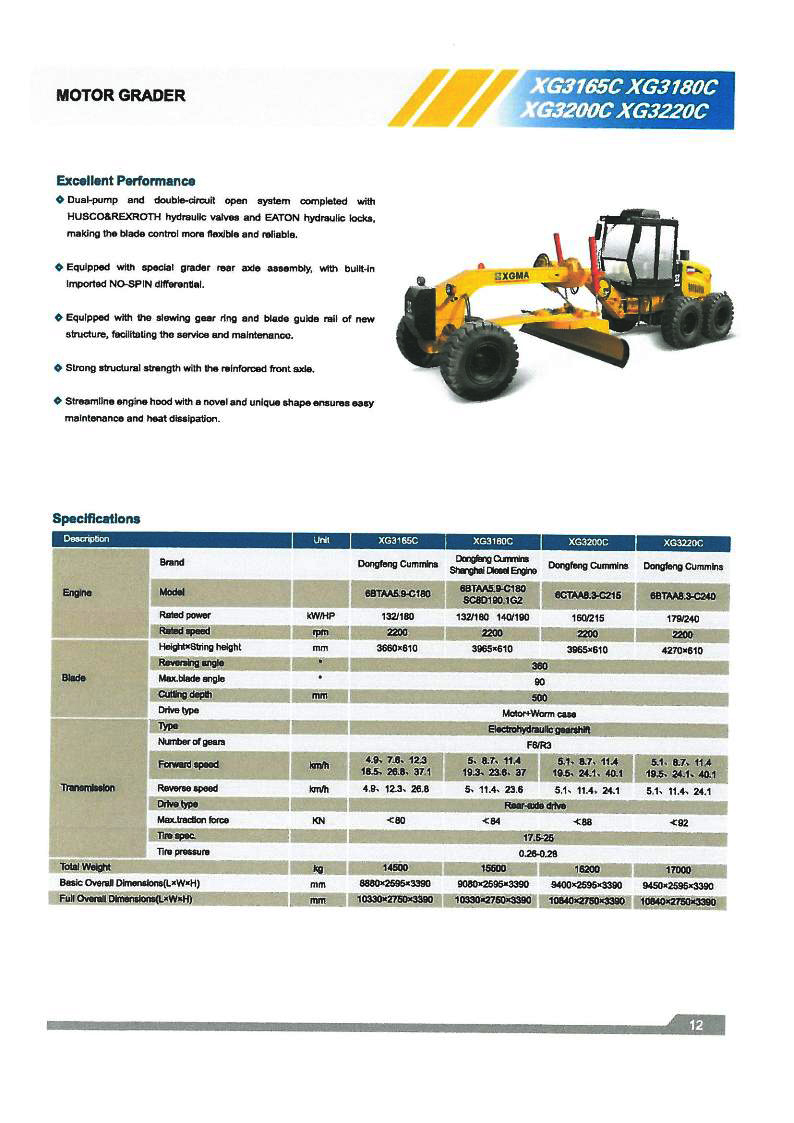

Johnson Taylors two motor Graders
Johnson Taylor offers a range of two motor graders form wide-blade excavation and surface levelling. They feature dual pumps and double-circuit open systems, making blade control and co-ordination more flexible and improving accuracy levels during the grading process.
The blades range from 3660 millimetres wide by 610 millimetres high to 4270 millimetres wide by 610 millimetres high, with a 360 degree reversing angle and 90 degree blade angle, with motor + worm drives making the units’ reach comparable to the best the market has to offer.
The front axle is reinforced and the rear axle assembly is equipped with a built-in “no-spin” differential, resulting in a robust sturdy grading performance.
Graders size
Size-wise, the machines range from 10220 millimetres to 10840 millimetres long, 2750 millimetres wide and 2290 millimetres high, with overall weights ranging from 16,2 tons to 17 tons.
So, whether the user is tasked with the construction and maintenance of dirt/gravel roads, preparing base courses for paved roads, or to set native soil foundation pads to finished grade for large buildings, our range of graders can efficiently and accurately produce inclined surfaces, give cant/camber to roadways or even just to produce drainage “V” ditches on the sides of highways, XGMA can get to finished grade efficiently and accurately and in minimal time.
